PFA Frame Immersion Tank Heater For High Purity Semiconductor Solar MEMs Industry
High-purity semiconductor solar MEMs immersion tank heater PFA Frame Heater
PFA Frame heaters are the perfect solution for heating harsh chemicals or DI water to constant temperatures in ultrapure tanks, including PVDF, PFA, and quartz tanks. Their PFA/PTFE wetted surfaces are ideal for use in high-purity applications where chemical compatibility is of utmost importance. PFA immersion tank heater provide high-efficiency heating with superior temperature control and maximum power output in a compact footprint. The heaters are available in various sizes that easily fit new and existing systems common to semiconductor, solar, MEMs, and other technological industries.
Features & Benefits
- Ultrapure PTFE/PFA wetted surfaces
- Reliable heating of harsh chemicals
- Maximum power in compact footprint
- Maximum 200°C heating capability
- Fast temperature response and efficiency
- Each configuration capable of various voltage-to-wattage combinations
- Integrate easily into most PVDF, PFA, and quartz wet process tanks
- Sizes for many tank dimensions
- Compact height of 1-5/8 inch
- Safety features include hi-limit sensor and encapsulated ground wire
- No N2 purge required
Optional Perforated Grids
- Top grids separate heaters from wafer carriers and components to increase the available tank space
- Bottom grids separate heaters from the tank floor
- Available for all frame sizes
- Adds 1/8 inch to height
Other Applications
Electrochemical Deposition
Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.
Electrochemical Deposition Products
B SERIES - SMALL TANK
Small metal over the side heater. Excellent for laboratory and small tank applications. Heats up to 300°F (149°C). Single phase. 500-1500 watts, 120-240 volts.  |
3HS SERIES - TUBULAR
Over the side, 3 element, tubular heater. Three phase. Three phase. 3000-10500 watts, 208-600 volts.  |

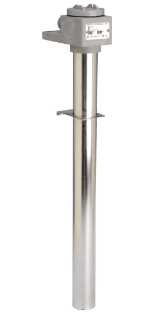

MOTS SINGLE - DERATED
Derated, low watt density, metal over the side heater. Single or three phase. 500-6000 watts, 120-600 volts.  |
HXF SERIES
Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.  |

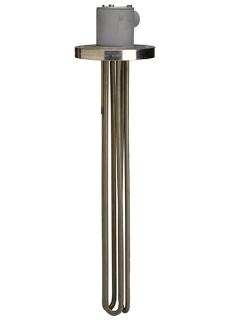

FLS SERIES FLANGE HEATER
Metal flanged heater, 3″, 5″ and 6″ flange sizes. 3000-72000 watts, 208-600 volts.  |

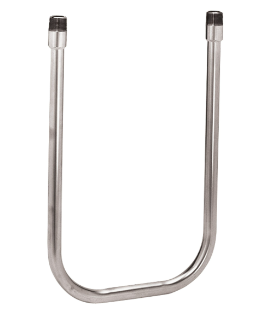

U SERIES COIL
Metal Immersion Coil in U shape for chemical heating or cooling requiring minimal recovery time. Available in steel, 316 stainless steel and titanium.  |
