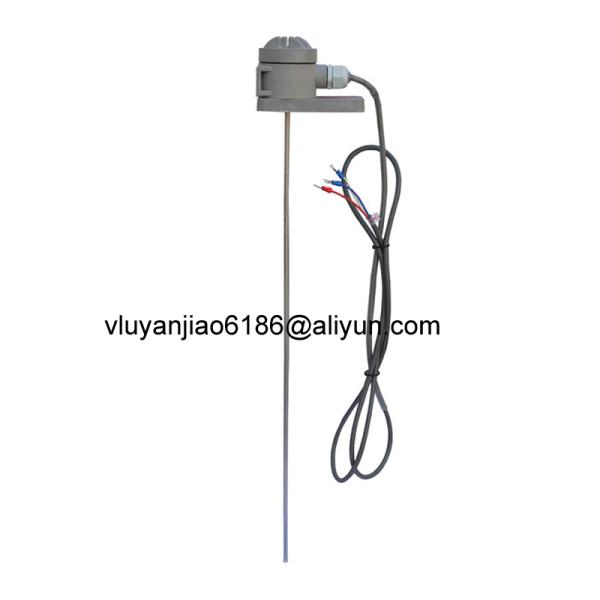

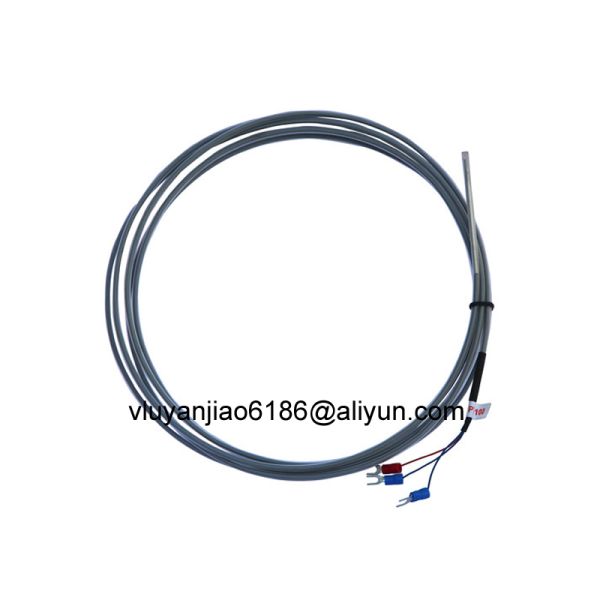

PTFE PT100 Temperature Probe For Acid Heating Corrosive Chemical Heating
Temperature Probes with PT100 sensor. PT100 RTD Sensor - Pt100 temperature sensor - RTD - PT100 - Sensor Measurement.
Electrode Level Sensor
Accurate monitoring of liquid levels in tanks and containers is essential to ensure smooth process operation and prevent unwanted variations such as evaporation or leaks. Our electrode level sensors effectively regulate and monitor liquid levels in various industrial applications, ensuring secure and reliable process operations.
Level Detector: Precise Control
Our level detectors provide precise monitoring of maximum and minimum levels in industrial applications. Configurable with 2 to 5 electrodes to detect up to 4 different levels, these devices offer a versatile and efficient solution. Optional integrated temperature probe available for additional functionality.
NS/NT Level Measurement
Operation is based on the principle of conductivity and is only guaranteed in electrically conductive liquids (conductivity > 10µS). As purely passive sensors, these detectors require connection to processing electronics (ETS100, ENR200/300) for operation.
Provides automated control and consistent liquid levels for most aqueous processes and waste treatment tanks, or when leak detection is required.
FEATURES
- Helps protect against fires and tank damage associated with low-level conditions
- Dual probe units for single point control; Multi probe units for two-point control and refill/pump down applications
- Fluoropolymer (PTFE) covered: 316 stainless steel, titanium, Hastelloy C® and graphite tipped Hastelloy probe materials
- Control enclosure: gasketed UL Type 1, IP21 (indoor) polypropylene box with stainless steel hardware
- Probe enclosure: vapor resistant polypropylene head with 10-foot (3m) flexible lead and quick connect plug
- CE compliant certifications
SPECIFICATIONS
| Relay rating |
10-amps at 120/208 to 240 volts, 50/60 Hz, single pole, double throw |
| Sensing output |
14.5 VAC |
| Ambient temperature range |
0°F (-18°C) to 104°F (40°C) |
| Maximum solution resistance |
70,000 ohm-CM |
| Ground connection |
On circuit board |
OPTIONS AVAILABLE (CONSULT FACTORY)
- Probe lengths up to 20-foot (6m)
- Can be pre-wired into combination controls
- 4, 5 or 6-probe devices for multiple level control applications
