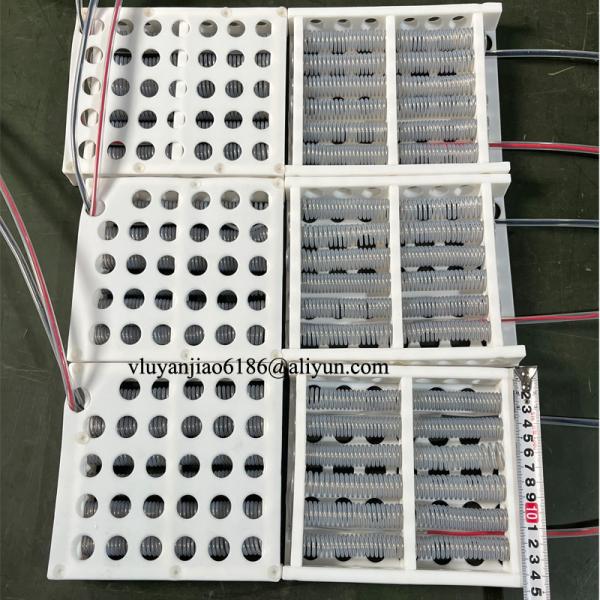

190x150x25MM PTFE Semiconductor Heater 1KW For 100 Celsius Ammonia Peroxide Solution

Name: 190x150x25MM PTFE Semiconductor Heater 1KW For 100 Celsius Ammonia Peroxide Solution
Brand: Surplus
Price: 1 USD

Frame Material : PTFE

Supply voltage (V/Phase) : 220V 1P

Inside material : PFA

Type of temperature control : PT100 or J type

Application : semiconductor, solar, MEMs, and other technological industries

Brand Name : Surplus

Model Number : Heaters For Semiconductors 02

Certification : ISO9001

Place of Origin : China

MOQ : 1 PCS

Price : Contact Us

Payment Terms : T/T

Supply Ability : 50 PC/Month

Delivery Time : 10-15 working days

Packaging Details : Wooden Case or Carton Box

Name : 190x150x25MM PTFE Semiconductor Heater For 100 Celsius Ammonia Peroxide Solution

Cable length : 2 meters/3meters/others

Power(KW) : 1KW

Contact Now

190x150x25MM PTFE Semiconductor Heater 1KW For 100 Celsius Ammonia Peroxide Solution

Markets

Semiconductor
Life Sciences

Applications

Fluid Heating

Product Overview

Heaters for semiconductor applications provide efficient heating for fluid baths at constant temperatures. These immersion heaters are ideal for semiconductor, pharmaceutical, and biomedical industries, offering:

Clean, even heat distribution
Compact and customizable designs
Maximum process work area with minimal chemical consumption
All-PFA wetted surfaces compatible with PVDF, PFA, or quartz tanks

Compatible With Aggressive Chemistries and Deionized Water

These durable heaters are available in grid, frame, and fence models with outputs from 1.0 to 30.0 kW. Key features include:

Low watt density (≤ 4 watts/in²) for rapid heating response
Easy integration into most process tanks
Custom configurations available based on specifications and tank size

Safety Features

Patented PreciseHeater coil with >99% efficiency and >10 year MTBF
Microprocessor-based temperature control
Optional safety features include platinum and embedded ground wires
Type-J process thermocouple and RTD over-temperature protection

Key Specifications

Parameter	Specification
Heater Element	Heating Coil
Wetted Surfaces	PFA/PTFE
Wattages	1.0 - 20 kW
Voltages	120 - 480 VAC 1 or 3 phase
Sizes (LxW)	7x5 to 19x14 inch
Height	1-5/8 inch
Temperature	200°C (392°F)
Hi-Limit Sensor	Type-J thermocouple
Ground Wire	Encapsulated
Lead Wire	15-ft

Other Applications

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Our products deliver:

Full power supply output performance
High efficiency and high-speed DC output
Reliable connectivity
ETL certification

Electrochemical Deposition Products

MOTS TRIPLE - DEEP TANK

Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.

MOTS TRIPLE - DEEP TANK

Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.

MOTS TRIPLE

Metal over the side heater. Three phase. 3000-36000 watts. 208-600 volts.

9HX SERIES

Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.

6HX SERIES

Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.

3HXOL SERIES

Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 3000-18000 watts, 208-480 volts.
